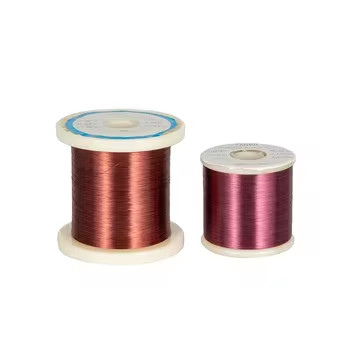

180C Polyesterimide Enameled Aluminium Wire 0.40-0.50mm

Name: 180C Polyesterimide Enameled Aluminium Wire 0.40-0.50mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: cuni 20
Price: 31.00 USD
Availability: InStock

Detalles del producto

Place of Origin: Shanghai, China

Nombre de la marca: TANKII

Certificación: ISO9001: 2008

Model Number: cuni 20

Pago y términos de envío

Minimum Order Quantity: 20kg

Precio: Negociable

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 15-28DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 300+TON+MONTH

Consiga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                    180C polyesterimide enameled wire, 0.40mm enamelled aluminium wire, high temperature resistant enameled wire


material:	Constantan/ Manganin	Wire Chemical:	cuni
type:	Round Insulated Wire	Insulation Material:	Polyesterimide, Polyester
application:	Electric Instrument, Electric Part Coil and so on	class:	130,155,180,200,220

material:	Constantan/ Manganin
Wire Chemical:	cuni
type:	Round Insulated Wire
Insulation Material:	Polyesterimide, Polyester
application:	Electric Instrument, Electric Part Coil and so on
class:	130,155,180,200,220

Descripción

180C Polyesterimide Enameled Aluminium Wire 0.40-0.50mm

Thermal Class 180 Size Supply 0.40/0.45/0.50 mm Polyesterimide Enameled Round Aluminium Wire

Type of bare alloy wire

Product Name	Enameled Wire
Conductor	Copper
Dimension	0.06-10mm
Thermal Class (ºC)	120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Insulation thickness	G1;G2;G3;G4
Certificate	UL
Standard	IEC,NEMA,GB,JIS
Packing	30kg-150kg ply-wood spool(250400/250500/250*600)
Application	Transformer; motor;generator; modern instrument; welding machine and so on

Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

roduct Name	Copper Nickel Alloy CuNi Wire
Product Description	Copper Nickel Alloy is mainly made of copper and nickel. The copper and nickel can be melted together no matter what percentage. Normally the resistivity of CuNi alloy will be higher if the Nickel content is larger than Copper content. From CuNi6 to CuNi44, the resistivity is from 0.1μΩm to 0.49μΩm. That will help the resistor manufacture choosing the most suitable alloy wire.
Product Features	By the way, the Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas.
