Type K thermocouples are the most widely adopted temperature sensing components across industrial sectors, thanks to their broad temperature range and reliable long-term performance. As the critical connecting component between the thermocouple sensing tip and the control/display instrument, thermocouple extension wire directly determines the accuracy and stability of the entire temperature measurement system. Among all available options, the green-white core silicone-jacketed extension wire stands out for its excellent temperature tolerance, high flexibility and wide environmental adaptability, making it a top choice for medium-low temperature industrial measurement and automation equipment matching.
Many purchasers fall into common traps during selection, such as mixing up calibration codes, ignoring jacket material quality, or choosing the wrong accuracy class. These missteps often lead to significant temperature deviation, premature jacket cracking and aging, and even complete failure of the temperature monitoring system. This guide breaks down the proper selection method for Type K green-white silicone extension wire from three perspectives: core product basics, key selection criteria, and common pitfalls to avoid.
1. Understanding Type K Green-White Silicone Thermocouple Extension Wire
1.1 Core Product Basics
Type K extension wire uses exactly the same nickel-chromium / nickel-silicon alloy as the Type K thermocouple itself for its internal conductors. Its primary function is to extend the thermocouple cold junction and compensate for measurement errors caused by ambient temperature fluctuations at the cold end, making it an indispensable part for accurate temperature readings.
Green and white is the universal industry color code for Type K extension wires: the positive conductor is green and the negative conductor is white. This design allows on-site technicians to quickly identify the thermocouple type and polarity, greatly reducing the risk of reverse wiring. The outer silicone rubber jacket offers far better high/low temperature resistance, flex endurance and insulation performance than standard PVC jackets, making it suitable for more demanding working environments.
1.2 Typical Application Fields
This type of extension wire is widely used for medium-low temperature measurement in chemical processing, metallurgy, power operation and maintenance, and HVAC automation systems. It is particularly well-suited for installations that require frequent bending or movement, as well as locations with elevated ambient temperatures where standard PVC wiring would degrade quickly.
2. Key Selection Factors: 5 Dimensions to Make the Right Choice
2.1 Verify Calibration Match and Conductor Material
The core function of extension wire is temperature compensation, which only works when the wire calibration perfectly matches the thermocouple type. Type K extension wire must use nickel-chromium and nickel-silicon alloy conductors — it can never be replaced by copper or ordinary copper-nickel alloys. Some low-cost products on the market use plain copper wire as a substitute, which provides zero temperature compensation and causes temperature measurement errors of several degrees Celsius. When sourcing, you can make an initial judgment via the green-white color code, and you should also request material composition test reports from the supplier to confirm the alloy ratio meets industry standards.
2.2 Evaluate Silicone Jacket Quality and Temperature Rating
The quality of the outer jacket directly impacts the service life and environmental adaptability of the extension wire. High-quality virgin silicone rubber jackets can operate continuously at temperatures from -60°C to 200°C, and withstand short-term exposure up to 250°C. They also feature inherent flame retardancy, ozone resistance and aging resistance, delivering stable long-term performance even outdoors or in high-temperature environments. Low-grade silicone jackets made from recycled materials fail to meet temperature requirements, and tend to soften, become sticky or crack under heat, leading to insulation failure and temperature measurement breakdowns in a short period.
The table below compares the performance of two common jacket materials for clearer reference:
Performance Aspect
Standard PVC Extension Wire
Silicone Rubber Extension Wire
Continuous Temperature Range
-20°C to 80°C
-60°C to 200°C
Flex Endurance
Moderate; prone to breakage after repeated bending
Excellent; ideal for dynamic bending installations
Aging Resistance
Prone to hardening and degradation at high temperatures
Ozone and aging resistant; much longer service life
Typical Use Case
Indoor fixed wiring, routine temperature measurement
Medium-high heat, moving installations, harsh outdoor conditions
2.3 Choose the Appropriate Accuracy Class for Your System
Thermocouple extension wires are generally available in two accuracy classes: standard grade and precision grade, each with different allowable error tolerances. Standard grade has an allowable error of ±2.5°C, while precision grade has a tighter tolerance of ±1.5°C to suit higher-accuracy measurement systems. Standard grade is sufficient for general industrial temperature measurement and standard equipment integration. For laboratory testing, precision instrumentation, and applications requiring high measurement accuracy, precision grade products are recommended.
2.4 Select Wire Gauge Based on Wiring Distance
The cross-sectional area of the conductors directly affects circuit resistance and signal attenuation. The longer the wiring run, the larger the conductor cross-section should be. Common sizes on the market include 2*0.5mm², 2*1.0mm² and 2*1.5mm². For short indoor runs, 0.5mm² is usually adequate; for long-distance signal transmission, 1.0mm² or larger sizes are recommended. An undersized wire will cause excessive signal loss and amplify measurement errors, while an oversized wire will add unnecessary procurement costs.
2.5 Match Special Performance to Your Working Conditions
Different operating environments call for different performance specifications, which should be confirmed against actual site conditions. For outdoor or high-humidity locations, verify the waterproof and moisture-resistant properties of the jacket. For environments with oil exposure or corrosive atmospheres, choose a special oil-resistant and chemical-resistant silicone jacket. For drag chain installations or applications with repeated flexing, select high-flexibility extension wires with stranded soft conductors to extend fatigue life.
3. Common Pitfalls to Avoid When Sourcing
3.1 Pitfall 1: Substituting Ordinary Electrical Wire for Extension Wire
Plain copper electrical wire provides no temperature compensation, cannot offset cold junction temperature errors, and will cause severe inaccuracy in temperature readings. The entire value of thermocouple extension wire lies in its matched alloy conductor composition. Never replace dedicated extension wire with ordinary electrical wire just to cut short-term costs.
3.2 Pitfall 2: Choosing Based Only on Low Price
Bargain-priced extension wires almost always come with compromises: impure conductor alloys and jackets made from recycled materials are very common. While they may appear functional at first, long-term use often leads to drifting temperature readings, jacket cracking and degradation, which ultimately raise maintenance and replacement costs far more than the initial savings.
3.3 Pitfall 3: Only Checking Temperature Rating and Ignoring Insulation
A silicone jacket needs to deliver more than just heat resistance — it must also maintain reliable insulation strength at elevated temperatures. Low-quality products often suffer a sharp drop in insulation performance under high heat, which can cause electrical leakage and signal interference. This not only destabilizes temperature readings but also introduces potential safety hazards.

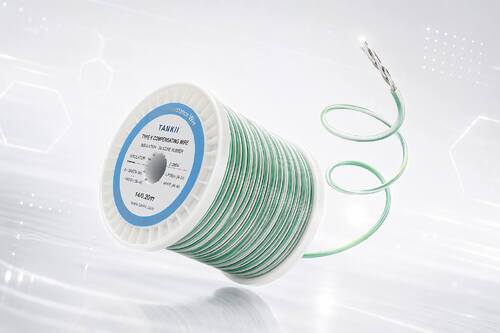

4. Tankii Type K Green-White Silicone Extension Wire: Full Specifications, Reliable Quality
4.1 Standard Alloy Conductors for Stable Accuracy
All Tankii Type K extension wires are manufactured with standard nickel-chromium / nickel-silicon alloy conductors, perfectly calibrated to match Type K thermocouples. Both standard and precision accuracy grades are available. Every batch undergoes thermoelectric force testing before delivery, with errors strictly controlled within applicable standard limits. The green-white color coding ensures clear polarity identification, simplifying on-site installation and reducing wiring errors.
4.2 Virgin Silicone Jacket for Demanding Conditions
Our jackets are made exclusively from virgin silicone rubber, covering a temperature range of -60°C to 200°C with excellent insulation, flame retardancy and aging resistance. Beyond the standard silicone version, we also offer high-flexibility, oil-resistant and other specialized jacket options to suit different site requirements. The wire withstands repeated bending without cracking, delivering a service life over 3 times longer than standard PVC extension wires.
4.3 Full Range of Sizes with Customization Options
Standard sizes from 0.3mm² to 2.5mm² are kept in stock, and single-core, multi-core and shielded constructions are all available for customization. We also offer custom jacket colors, printed markings and coil lengths to meet the needs of equipment integration, project wiring and other scenarios. Every batch comes with a material test report and accuracy test report for full quality traceability.
Final Thoughts
At the end of the day, the key to selecting the right Type K green-white silicone extension wire is to focus on material quality, accuracy matching and jacket performance — not just the price tag. A properly specified extension wire ensures accurate and stable temperature readings, reduces long-term maintenance and replacement costs, and improves the overall reliability of your temperature measurement system. If you need help selecting the right specification for your project, or have custom requirements for specific working conditions, reach out to the Tankii technical team for tailored selection advice and sample testing support.
