Detalles del producto
Lugar de origen: CHINA
Nombre de la marca: TANKII
Certificación: ISO9001
Número de modelo: NiCr8020
Pago y términos de envío
Cantidad de orden mínima: 10Kg
Detalles de empaquetado: Caja del cartón
Tiempo de entrega: 2~5 días
Condiciones de pago: L/C, T/T, Western Union
Capacidad de la fuente: 5000ton/year
Artículo: |
El nicrom trenzado ata con alambre 5*0.287m m usados para el cable térmico |
Material: |
Níquel el 80%, cromo el 20% |
Superficie: |
Brillante |
Pakage: |
en la bobina |
Artículo: |
El nicrom trenzado ata con alambre 5*0.287m m usados para el cable térmico |
Material: |
Níquel el 80%, cromo el 20% |
Superficie: |
Brillante |
Pakage: |
en la bobina |

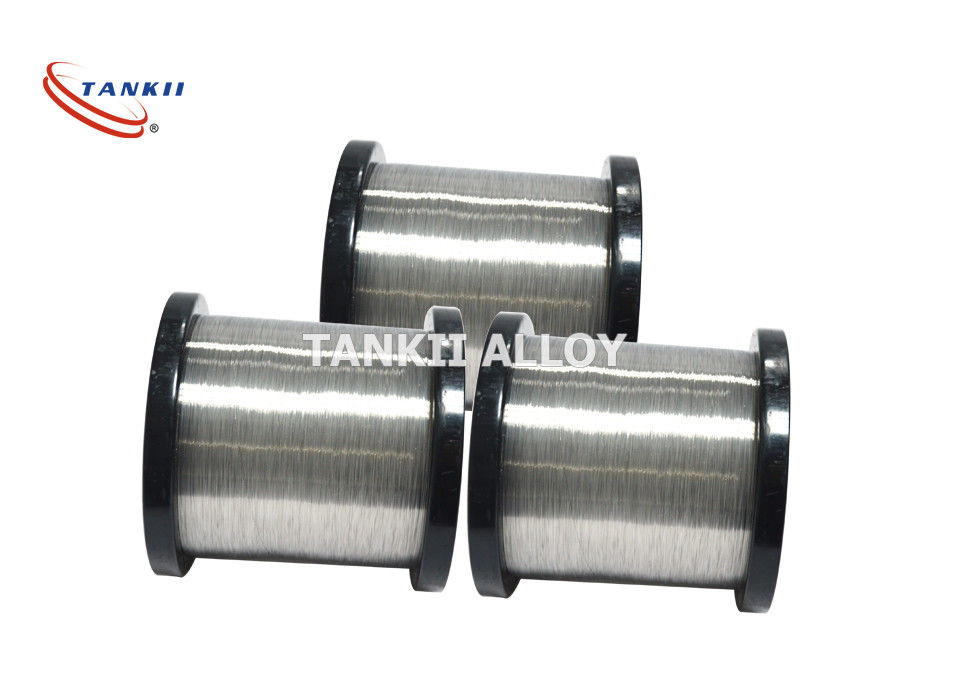

Nickel Alloy Wire Nichrome 675/NiCr6015
1.About Nichrome NiCr6015 wire
Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2.NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC
3.Chemical Composition of NiCr6015
C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
Max | |||||||||
0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4.Typical Mechanical properties of Nicr6015
Yield strength | Tensile Strength | Elongation |
Mpa | Mpa | % |
370 | 730 | 35 |
5.Temperature Factors Of Electrical Resistivity
20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
