Nikrothal 80 High Resistance Wire Ni80 Nicr 80/20 Wire/ Nickel Alloy Sheet Nickel-chromium alloy

Detalles del producto

Lugar de origen: Shangai

Nombre de la marca: TANKII

Certificación: ISO9001

Número de modelo: NCHW-1

Pago y términos de envío

Cantidad de orden mínima: 30kg

Precio: usd+28+kg

Detalles de empaquetado: paquete estándar

Tiempo de entrega: 8-20 días

Condiciones de pago: L/C, T/T, Western Union

Capacidad de la fuente: 200+TON+MONTH

Consiga el mejor precio
Contacta ahora
Especificaciones
Punto culminante:
Modelo no.:
NCHW-1
Material:
níquel, cromo
Código del HS:
75062000
Modelo no.:
NCHW-1
Material:
níquel, cromo
Código del HS:
75062000
Descripción
Nikrothal 80 High Resistance Wire Ni80 Nicr 80/20 Wire/ Nickel Alloy Sheet Nickel-chromium alloy

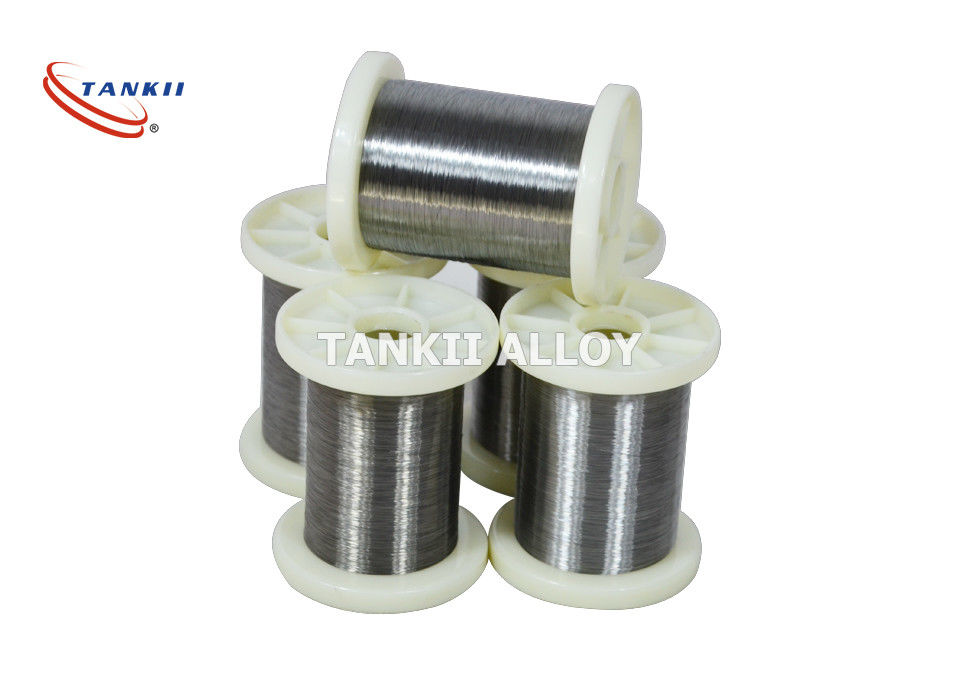

Nikrothal 80 High Resistance Wire Nicr 80/20 Wire

Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.

Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.



The high aluminum content, in combination with the high chromium content let the scaling temperature can reach to 1425ºC (2600ºF);
Heating wires shaped by means of high speed automatic cooling machine of which the power capacity is controlled by computer, they are available as wire and ribbon.The Alloy resistance Heating Wire includes pure nickel, chromium alloy, iron-chromium aluminum alloy and copper-nickel alloy.
Fecral resistance Heating Wire is produced by melting, rolling, forging, annealing, drawing, surface treatment, resistance control
test and other methods.

Application Area

Fecral Alloy Cr15Ni60 electric resistance Heating Wire is main widely used in manufacturing industrial furnaces, civil heating equipment, various resistors and locomotive brake resistors and other heating equipment.And Cr15Ni60 electric resistance Heating Wire is also suitable for keeping the car's hot seat and steering wheel warm, refrigerator, air conditioner, USB cable heater for heating, electric blanket, towel, foot massage, electric stove, pet pillow, hot clothes, window heating, plumbing Freeze protection, electric slimming belt, pet incubator, medical care equipment.



Pls be free to contact us if there is any question.

Designation Components
Ni Fe Zn Mn Cu AI Cr Si
CN49 40~50     2.5 Max rem
CN30 21~24     1.0 Max rem
CN15 10~13     1.0 Max rem
CN10 5~7     0.5 Max rem
CN5 2~2.5     0.5 Max rem
NCHW-1 77 Min     2.5 Max     19~21 0.75~1.5
NCHW-2 57 Min     1.5 Max     15~18 0.75~1.5
FCHW-1   rem   1.0 Max   4.0~6.0 23~26 1.5 Min
FCHW-2   rem   1.0 Max   2.0~4.0 17~22 1.5 Min

Nikrothal 80 High Resistance Wire Ni80 Nicr 80/20 Wire/ Nickel Alloy Sheet Nickel-chromium alloy 0Nikrothal 80 High Resistance Wire Ni80 Nicr 80/20 Wire/ Nickel Alloy Sheet Nickel-chromium alloy 1Nikrothal 80 High Resistance Wire Ni80 Nicr 80/20 Wire/ Nickel Alloy Sheet Nickel-chromium alloy 2
