Detalles del producto
Lugar de origen: Shanghai, China
Nombre de la marca: TANKII
Certificación: ISO9001:2008
Número de modelo: NiCr80/20
Pago y términos de envío
Cantidad de orden mínima: 20 KG
Precio: To negotiable
Detalles de empaquetado: Carrete, bobina, cartón, caso de madera, película plástica de Palletwith según los requisitos del cl
Tiempo de entrega: 7-12 días
Condiciones de pago: L/C, T/T, Western Union, MoneyGram
Capacidad de la fuente: 2000+TON+YEAR
Tamaño: |
Requerido |
Forma: |
Cinta plana |
color: |
Brillante |
Característica: |
Resistencia estable, llanura |
Tamaño: |
Requerido |
Forma: |
Cinta plana |
color: |
Brillante |
Característica: |
Resistencia estable, llanura |

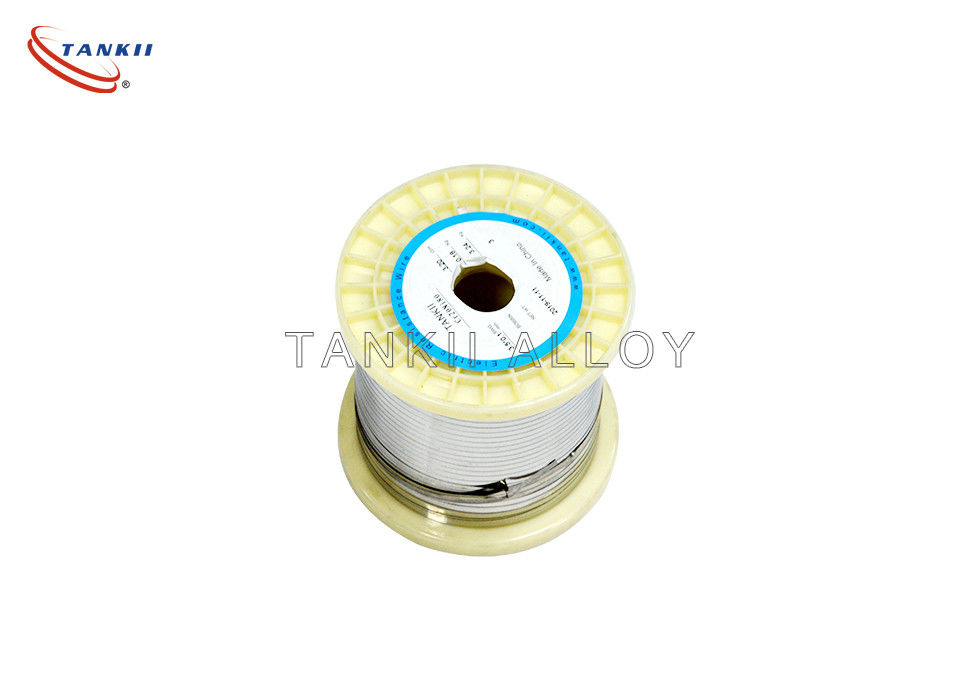

0.15*2.25 Electric Resistance Wire Flat Ribbon Bright Resistance Ribbon
Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
Resistance wire is wire intended for making electrical resistors (which are used to control the amount of current in a circuit). It is better if the alloy used has a high resistivity, since a shorter wire can then be used. In many situations, the stability of the resistor is of primary importance, and thus the alloy's temperature coefficient of resistivity and corrosion resistance play a large part in material selection.
When resistance wire is used for heating elements (in electric heaters, toasters, and the like), high resistivity and oxidation resistance is important.
Sometimes resistance wire is insulated by ceramic powder and sheathed in a tube of another alloy. Such heating elements are used in electric ovens and water heaters, and in specialized forms for cooktops.
Specification:
Alloy Type | Diameter | Resistivity | Tensile | Elongation (%) |
Bending | Max. Continuous |
Working Life |
(mm) | (μΩm)(20°C) | Strength | Times | Service | (hours) | ||
(N/mm²) | Temperature (°C) |
||||||
Cr20Ni80 | <0> | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
>3,0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
Cr30Ni70 | <0> | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
Cr15Ni60 | <0> | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
Cr20Ni35 | <0> | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
Serie
Funcionamiento de la nomenclatura de la aleación | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Composición química principal | Ni | Resto | Resto | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
FE | ≤1.0 | ≤1.0 | Resto | Resto | Resto | |
Temporeros máximos del servicio continuo. del elemento (ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
Resistencia en 20ºC (μΩ·m) | 1,09 | 1,18 | 1,12 | 1,0 | 1,04 | |
Densidad (g/cm3) | 8,40 | 8,10 | 8,20 | 7,90 | 7,90 | |
Conductividad termal (KJ/m·h·ºC) | 60,3 | 45,2 | 45,2 | 43,8 | 43,8 | |
Coeficiente de las líneas extensión (α×10-6/ºC) | 18,0 | 17,0 | 17,0 | 19,0 | 19,0 | |
Punto de fusión aproximadamente (ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
Alargamiento en la ruptura (%) | >20 | >20 | >20 | >20 | >20 | |
Estructura micrográfica | austenita | austenita | austenita | austenita | austenita | |
Propiedades magnéticas | no magnético | no magnético | Magnético débil | Magnético débil | Magnético débil |
Descripción: Ni35Cr20, también llamó a Chromel D, Nikrothal 40, N4, Chromax, HAI-NiCr 40, Tophet D, Resistohm 40,
Cronifer III, 35-20 Ni-Cr, aleación D, Nikrothal 4, MWS-610, Stablohm 610, NiCr-D
Tecnología única y soluciones por encargo
Proveemos de soluciones customed a sus problemas nuestro único
tecnologías y conocimiento versado bien de los materiales adquiridos a través
nuestra experiencia de fabricar 50.000 artículos.
Capacidad de añadir características múltiples
Somos capaces de añadir una variedad de características a los materiales metálicos
(capa de la resina, galjanoplastia, diferentes tipos de enlace de metal, el raspar multigage, etc.).
